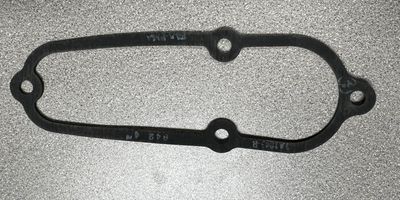

CONTINENTAL W-670 ROCKER COVER RUBBER/BLACK
The following parts are all FAA-PMA certified. The gaskets are made of high-quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
W-670-6A, -6N, -16, -K, -M, -23, -24.
YA20254-R 10.00 ea.

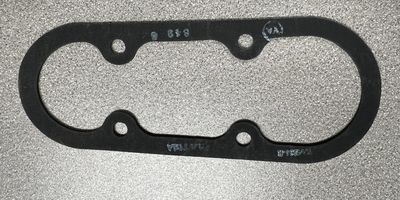

CONTINENTAL A65 through O-300 ROCKER COVER RUBBER/BLACK
The following parts are all FAA-PMA certified. The gaskets are made of high-quality materials and are black in color.
YA655706-R 13.00 ea.

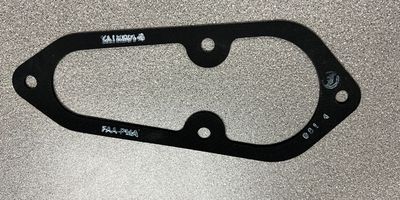

LYCOMING R-680 ROCKER COVER RUBBER/BLACK
The following parts are all FAA-PMA certified. The gaskets are made of high-quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-B4E,-B4B,-B4,-B4C,-B4D-E3,-E3A,-E3B,-E2.-E1.
YA1843-R 10.00 ea.
JACOBS ROCKER COVER RUBBER/BLACK
The following parts are all FAA-PMA certified. The gaskets are made of high-quality materials and are black in color.
YA4331-R 10.00 ea.
WRIGHT 760 & 975 ROCKER COVER RUBBER/BLACK
The following parts are all FAA-PMA certified. The gaskets are made of high-quality materials and are black in color.
YA110001-R 10.00 ea.

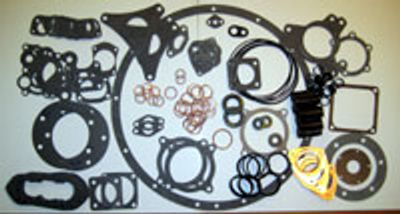

CONTINENTAL W-670 COMPLETE OVERHAUL GASKET SET
The following parts are all FAA-PMA certified. The gaskets are made of high-quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
W-670-6A, -6N, -16, -K, -M, -23, -24.
(1) YA20951-1 FRONT SUMP GASKET 3.50 ea.
(1) YA20952-1 REAR SUMP GASKET7 3.50 ea.
(7) YA20275-1 SUMP/ROCKER HOSE 4.50 ea.
(14) YA20268-1 LOWER TAPPET GUIDE GASKET 2.50 ea.
(1) AN900-16 SUMP PLUG SEAL 1.00 ea.
(14) YA20254-1 ROCKER COVER GASKET 3.50 ea.
(14) YA20254-R ROCKER COVER GASKET RUBBER (OPTIONAL) 3.50 ea.
(6) AN900-12 ROCKER NIPPLE SEAL 1.50 ea.
(7) YA2827-1 INTAKE AT CYLINDER GASKET 12.00 ea.
(14) YA24335-1 PUSH ROD TUBE BASE GASKET 2.50 ea.
(7) YA2845-1 CYLINDER BASE PACKING 3.20 ea.
(14) YA20266-1 PUSH ROD TUBE UPPER PACKING 3.50 ea.
(7) YA2096-1 LOWER INTAKE PIPE PACKING 4.50 ea.
(1) YA3112-1 ACC. CASE GASKET 20.00 ea.
(2) YA2249-1 STARTER GASKET 5.00 ea.
(1) YA20467-1 SCAVAGE ELBOW GASKET 1.50 ea.
(2) YA20889-1 SEAL MAG. DRIVE GEAR 15.00 ea.
(1) YA500060-1 GENERATOR DRIVE HOUSING 3.00 ea.
(1) YA22442-1 STEP UP DRIVE TO GENERATOR 3.50 ea.
(1) YA500062-1 STEP UP DRIVE SHAFT GASKET 4.00 ea.
(1) YA22443-1 TACH DRIVE TO CASE GASKET 3.00 ea.
(1) YA3710-1 DUPLEX OIL PUMP MOUNT 5.00 ea.
(1) YA3939-1 DUPLEX OIL PUMP PLATE GASKET 5.00 ea.
(2) YA20977-1 DUPLEX OIL PUMP SEAL 11.00 ea.
(2) YA20748-1 DUPLEX OIL PUMP OUTLET 2.00 ea.
(1) AN900-16 SEAL PRESSURE ADJUST 1.00 ea.
(1) YA20423-1 FUEL PUMP GASKET 3.50 ea.
(1) YA22143-1 FUEL PUMP GASKET 3.50 ea.
(1) YA20532-1 SCAVAGE PUMP INNER GASKET 6.00 ea.
(1) YA22446-1 SCAVAGE PUMP MOUNT GASKET 5.00 ea.
(1) YA2589-1 GASKET HIGH PRESSURE OIL 3.00 ea.
(1) AN900-10 HIGH PRESSURE OIL RELIEF PLUG 0.50 ea.
(1) AN900-24 SEAL MAIN OIL SCREEN 0.75 ea.
(1) AN900-16 SEAL SCAVAGE OIL SCREEN 1.00 ea.
(2) YA22931-1 GASKET MAGNETO 6N ENGINE 5.00 ea.
(2) YA2247-1 GASKET MAGNETO 6A ENGINE 5.00 ea.
(1) YA22803-1 CARBURATOR BASE GASKET 3.50 ea.
(1) YA22453-1 AIRHORN-CARBURATOR GASKET 5.00 ea.
(1) AN900-16 AIRHORN PLUG GASKET 1.00 ea.
(1) AN900-10 PRESSURE OIL SCREEN PLUG 0.50 ea.
(1) AN900-12 GASKET-HOSE, SUMP NIPPLE 1.50 ea.
(1) AN900-14 GASKET-LOW PRESSURE RELIEF 1.00 ea.
(1) YA22142-1 SCAVAGE PUMP DRIVE SHAFT 11.00 ea.
(1) YA531090-1 GASKET-STARTER MOUNT 7.50 ea.
(14) AN900-16 PUSH ROD TUBE GLAND NUT 1.00 ea.
(1) YA20421-1 SEAL SCAVAGE OIL LINE 2.50 ea.
YA22075 W-670 Complete Overhaul Gasket Set 445.50 set
YA22075-R W-670 Set w/Rubber Rocker Gasket 520.50 set

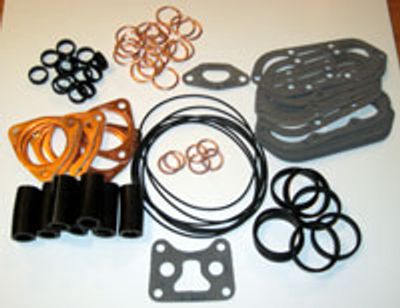

CONTINENTAL W-670 TOP OVERHAUL GASKET SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
W-670-6A, -6N, -16, -K, -M, -23, -24.
(1) YA20951-1 FRONT SUMP GASKET
(1) YA20952-1 REAR SUMP GASKET
(7) YA20275-1 SUMP/ROCKER HOSE
(14) YA20254-1 ROCKER COVER GASKET
(6) AN900-12 ROCKER NIPPLE SEAL
(7) YA2827-1 INTAKE AT CYLINDER GASKET
(14) YA24335-1 PUSH ROD TUBE BASE GASKET
(7) YA2845-1 CYLINDER BASE PACKING
(14) YA20266-1 PUSH ROD TUBE UPPER PACKING
(7) YA2096-1 LOWER INTAKE PIPE PACKING
(1) AN900-16 SUMP PLUG SEAL
(14) AN900-16 PUSH ROD TUBE GLAND NUT
YA22065 W-670 Top Overhaul Gasket Set 279.00 set

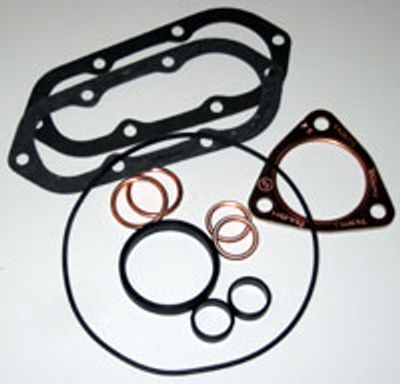

CONTINENTAL W-670 CYLINDER REPLACEMENT SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
W-670-6A, -6N, -16, -K, -M, -23, -24.
(2) YA20254-1 ROCKER COVER GASKET
(1) YA2827-1 INTAKE TUBE TO CYLINDER GASKET
(2) YA24335-1 PUSHROD TUBE GASKET
(1) YA2845-1 CYLINDER BASE SEAL
(2) YA20266-1 PUSHROD TUBE PACKING SEAL
(1) YA2096-1 INTAKE PIPE PACKING
(2) AN900-16 PUSHROD GLAND NUT GASKET
YA22055 W-670 Cylinder Replacement Set 38.00 set
LYCOMING 225 COMPLETE OVERHUAL GASKET SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-B4E,-B4B,-B4,-B4C,-B4D.
(2) YASTD-186 SEAL TACHOMETER DRIVE 14.00 ea.
(1) YASTD-187 SEAL GENERATOR DRIVE 17.00 ea.
(36) YASTD-346 SEAL ROCKER ARM SHAFT 1.25 ea.
(2) YASTD-347 HOSE ROCKER BOX 3.50 ea.
(13) YASTD-388 HOSE ROCKER BOX 6.50 ea.
(4) YASTD-389 HOSE ROCKER BOX 6.50 ea.
(9) YASTD-499 CYLINDER BASE PACKING 3.20 ea.
(1) YASTD-548 SEAL VACUUM PUMP DRIVE 13.00 ea.
(18) YA140 SEAL VALVE ADJUSTING SCREW 2.75 ea.
(1) YA177 GASKET-DISTRIBUTOR OIL SEAL 4.00 ea.
(1) YA231 GASKET-DISTRIBUTOR MOUNT 4.00 ea.
(1) YA238 GASKET-MAGNETO MOUNT 3.50 ea.
(9) YA404-B GASKET-INTAKE PIPE 3.50 ea.
(9) YA405 PACKING-EXHAUST OUTLET (NOT INCLUDED IN KIT) 25.00 ea.
(1) YA1268 GASKET-CAM IDLER GEAR PIN 2.50 ea.
(9) YA568 PACKING-INTAKE PIPE 5.00 ea.
(1) YA573-C GASKET-OIL STRAINER NUT 4.00 ea.
(2) YA680-AA CRANKPIN OIL SEAL 2.00 ea.
(18) YA690-D GASKET-LIFTER GUIDE 2.50 ea.
(1) YA715 PACKING-THRUST BEARING CAP 5.00 ea.
(1) YA843-B GASKET-OIL PUMP MOUNT 3.50 ea.
(1) YA848-B GASKET-CARBURETOR MOUNT 4.00 ea.
(1) YA849-C GASKET-OIL RELIEF VALVE BODY 3.50 ea.
(1) YA852-D GASKET-ACCESSORY DRIVE HOUSING 22.50 ea.
(1) YA1027-C GASKET-GENERATOR MOUNT 5.00 ea.
(1) YA1045-C GASKET-CRANKCASE BREATHER 3.00 ea.
(2) YA1076 GASKET-MAGNETO DRIVE BASE 4.00 ea.
(2) YA1077-B GASKET-THRUST BEARING CAP 3.00 ea.
(18) YA1111-C PACKING-PUSHROD TUBE 5.00 ea.
(18) YA1112-BC HOSE-PUSHROD TUBE 5.00 ea.
(1) YA1169-B GASKET-ACC. HOUSING BREATHER 3.00 ea.
(1) YA1183-B GASKET-OIL SUMP REAR 4.00 ea.
(1) YA1183-R GASKET-OIL SUMP REAR RUBBER 5.00 ea.
(1) YA1185-B GASKET-OIL SUMP FRONT 3.00 ea.
(1) YA1185-R GASKET –OIL SUMP REAR RUBBER 4.00 ea.
(1) YA1396-B GASKET-STARTER MOUNT 7.50 ea.
(2) YA1503-B GASKET-CARBURETOR AIR INTAKE 4.00 ea.
(1) YA1691-C GASKET-FUEL PUMP MOUNT 3.50 ea.
(1) YA1699-C GASKET-VACUUM PUMP MOUNT 4.00 ea.
(1) YA1794 GASKET-FUEL DRIVE COVER 4.00 ea.
(3) YA1794-B GASKET-GENERATOR DRIVE MOUNT 3.00 ea.
(1) YA1821-B GASKET-CRANKCASE BREATHER 3.00 ea.
(18) YA1843 GASKET-ROCKER COVER 3.50 ea.
(18) YA1843-R GASKET-ROCKER COVER RUBBER (OPTIONAL) 10.00 ea.
1(1) YA1882 GASKET-TACHOMETER DRIVE 4.00 ea.
(1) YA1883-B GASKET-DIST. PACKING RETAINER 3.60 ea.
(2) YA1884 PACKING-DISTRIBUTOR DRIVE SHAFT 3.00 ea.
(1) YA1923-C GASKET-STARTER HOUSING 25.00 ea.
(1) YA1940 GASKET-THRUST BEARING BREATHER 2.35 ea.
(1) YA1952 GASKET-OIL FILTER 4.00 ea.
(1) YA8313 GASKET-OIL FILTER 4.00 ea.
(2) AN900-16 CRUSH GASKET 1.00 ea.
(2) AN900-10 CRUSH GASKET 1.00 ea.
(3) AN900-12 CRUSH GASKET 1.50 ea.
YA680225-MS 225 Complete Overhaul Gasket Set 700.00 set
YA680225-MS-R 225 Set w/Rubber Rocker Gasket 794.00 set
LYCOMING 225 TOP OVERHUAL GASKET SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-B4E,-B4B,-B4,-B4C,-B4D.
YA680225-TS 225 Top Overhaul Gasket Set 473.00 set
LYCOMING 225 CYLINDER REPLACEMENT SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-B4E,-B4B,-B4,-B4C,-B4D.
YA680225-S 225 Cylinder Replacement Set 56.00 set
LYCOMING 300 COMPLETE OVERHUAL GASKET SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-E3,-E3A,-E3B,-E2.-E1.
(2) YASTD-186 SEAL TACHOMETER DRIVE 14.00 ea.
(1) YASTD-187 SEAL GENERATOR DRIVE 17.00 ea.
(36) YASTD-346 SEAL ROCKER ARM SHAFT 1.25 ea.
(2) YASTD-347 HOSE ROCKER BOX 3.50 ea.
(13) YASTD-388 HOSE ROCKER BOX 6.50 ea.
(4) YASTD-389 HOSE ROCKER BOX 6.50 ea.
(9) YASTD-499 CYLINDER BASE PACKING 3.20 ea.
(1) YASTD-548 SEAL VACUUM PUMP DRIVE 13.00 ea.
(18) YA140 SEAL VALVE ADJUSTING SCREW 2.75 ea.
(1) YA159 GASKET-GOVERNOR BASE 1.00 ea.
(1) YA177 GASKET-DISTRIBUTOR OIL SEAL 4.00 ea.
(1) YA179-B GASKET-GOVERNOR 4.50 ea.
(1) YA231 GASKET-DISTRIBUTOR MOUNT 4.00 ea.
(1) YA238 GASKET-MAGNETO MOUNT 3.50 ea.
(9) YA404-B GASKET-INTAKE PIPE 3.50 ea.
(1) YA1268 GASKET-CAM IDLER GEAR PIN 2.50 ea.
(9) YA568 PACKING-INTAKE PIPE 5.00 ea.
(1) YA573-C GASKET-OIL STRAINER NUT 4.00 ea.
(2) YA680-AA CRANKPIN OIL SEAL 2.00 ea.
(18) YA690-D GASKET-LIFTER GUIDE 2.50 ea.
(1) YA715 PACKING-THRUST BEARING CAP 5.00 ea.
(1) YA843-B GASKET-OIL PUMP MOUNT 3.50 ea.
(1) YA848-B GASKET-CARBURETOR MOUNT 4.00 ea.
(1) YA849-C GASKET-OIL RELIEF VALVE BODY 3.50 ea.
(1) YA852-D GASKET-ACCESSORY DRIVE HOUSING 22.50 ea.
(1) YA1027-C GASKET-GENERATOR MOUNT 5.00 ea.
(1) YA1045-C GASKET-CRANKCASE BREATHER 3.00 ea.
(2) YA1076 GASKET-MAGNETO DRIVE BASE 4.00 ea.
(2) YA1077-B GASKET-THRUST BEARING CAP 3.00 ea.
(18) YA1111-C PACKING-PUSHROD TUBE 5.00 ea.
(18) YA1112-BC HOSE-PUSHROD TUBE 5.00 ea.
(1) YA1169-B GASKET-ACC. HOUSING BREATHER 3.00 ea.
(1) YA1183-B GASKET-OIL SUMP REAR 4.00 ea.
(1) YA1183-R GASKET-OIL SUMP REAR RUBBER 5.00 ea.
(1) YA1185-B GASKET-OIL SUMP FRONT 3.00 ea.
(1) YA1185-R GASKET –OIL SUMP REAR RUBBER 4.00 ea.
(1) YA1396-B GASKET-STARTER MOUNT 7.50 ea.
(2) YA1503-B GASKET-CARBURETOR AIR INTAKE 4.00 ea.
(1) YA1691-C GASKET-FUEL PUMP MOUNT 3.50 ea.
(1) YA1699-C GASKET-VACUUM PUMP MOUNT 4.00 ea.
(9) YA1747 GASKET-EXHAUST OUTLET 15.00 ea.
(1) YA1794 GASKET-FUEL DRIVE COVER 4.00 ea.
(3) YA1794-B GASKET-GENERATOR DRIVE MOUNT 3.00 ea.
(1) YA1821-B GASKET-CRANKCASE BREATHER 3.00 ea.
(18) YA1843 GASKET-ROCKER COVER 3.50 ea.
(18) YA1843-R GASKET-ROCKER COVER RUBBER (OPTIONAL) 10.00 ea.
1(1) YA1882 GASKET-TACHOMETER DRIVE 4.00 ea.
(1) YA1883-B GASKET-DIST. PACKING RETAINER 3.60 ea.
(2) YA1884 PACKING-DISTRIBUTOR DRIVE SHAFT 3.00 ea.
(1) YA1923-C GASKET-STARTER HOUSING 25.00 ea.
(1) YA1940 GASKET-THRUST BEARING BREATHER 2.35 ea.
(1) YA1952 GASKET-OIL FILTER 4.00 ea.
(1) YA8313 GASKET-OIL FILTER 4.00 ea.
(2) AN900-16 CRUSH GASKET 1.00 ea.
(2) AN900-10 CRUSH GASKET 1.00 ea.
(3) AN900-12 CRUSH GASKET 1.50 ea.
YA680300-MS 300 Complete Overhaul Gasket Set 810.00 set
YA680300-MS-R 300 Set w/Rubber Gasket 885.00 set
LYCOMING 300 TOP OVERHUAL GASKET SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-E3,-E3A,-E3B,-E2.-E1.
YA680300-TS 300 Top Overhaul Gasket Set 569.00 set
LYCOMING 300 CYLINDER REPLACEMENT SET
The following parts are all FAA-PMA certified. The gaskets are made of high quality materials and are black in color.
The following gaskets are FAA-PMA approved for use on the following engines:
R-680-E3,-E3A,-E3B,-E2.-E1.
YA680225-S 300 Cylinder Replacement Set 51.00 set
